FT30-P Payload Drop System for Matrice 30

Original price $649.00 - Original price $649.00
Original price
$649.00 - $649.00
Current price $649.00

Key Features:

  • Compatible with DJI Matrice 30 drone
  • Based on DJI SDK, control the drop via the DJI pilot
  • quick-release design, easy to install
  • Max dropper weight 10Kg (for DJI M30 drone, no more than 500g)

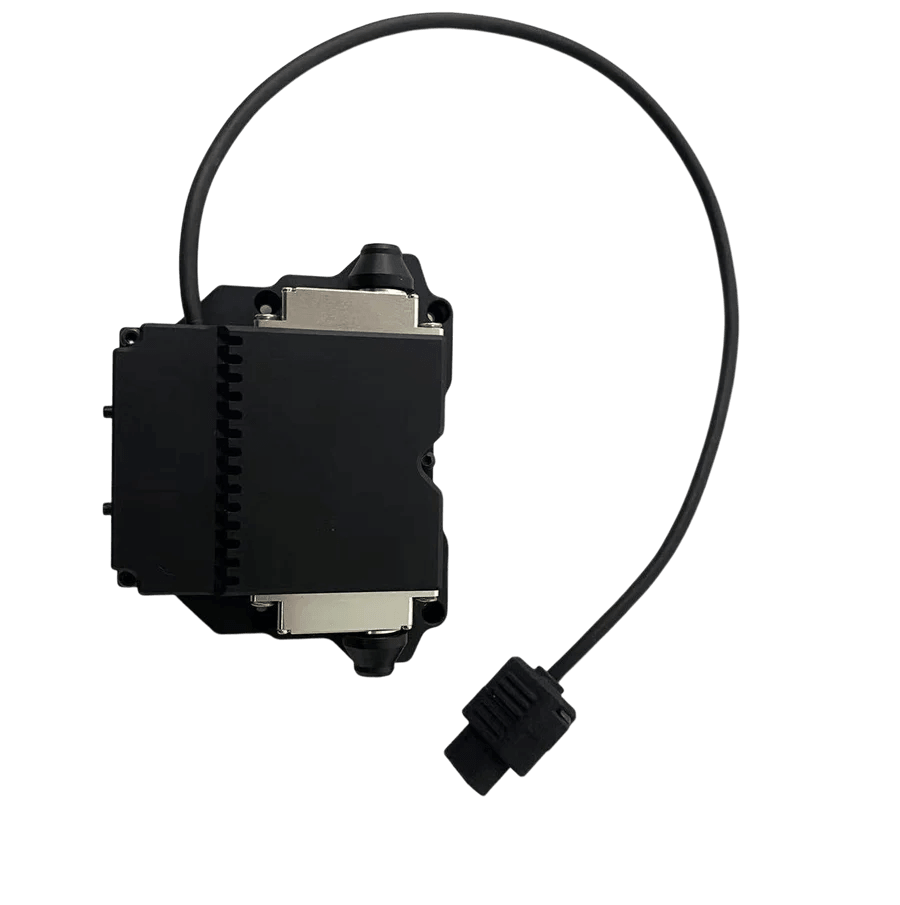

    FT30-P Payload Drop System

    The air payload dropper, and drop release mechanism system hooks for the DJI Matrice 30 drone, based on DJI SDK, are controlled via DJI Pilot. The drop hooks' loading capacity is 10Kg. Considering the drop capacity of the DJI M30 drone, we suggest a loading weight of no more than 500g.

    The DJI M30 drone air payload dropper kits are seamlessly connected to Pilot2 control, It has a built-in dual-channel high-performance servo motor, and a single hook can drive a maximum of 5Kg, the unique slope sliding decoupling minimizes the size of the M30 drop release hooks without changing the structure of the drone.


    How to Operate FT30-P for M30

    • On the rear side of the drop system, you will see two buttons associated with their respective side of the aircraft. These buttons control whether it is primed for loading or dropping.
    • A  horizontal position is prepared for loading, and a vertical position is primed for dropping.
    • If it is vertical without a load attached, press the button to prepare it for loading.
    • Once the load is ready, press the button again to prime for dropping.
    • When primed and prepared to drop, unlock the system on the RC and click on the side you want to drop.
    • The parachute icons indicate which side is dropping: a parachute with a single dot below is the left side, and a parachute with double dots below is the right side.
