DJI Zenmuse H30T

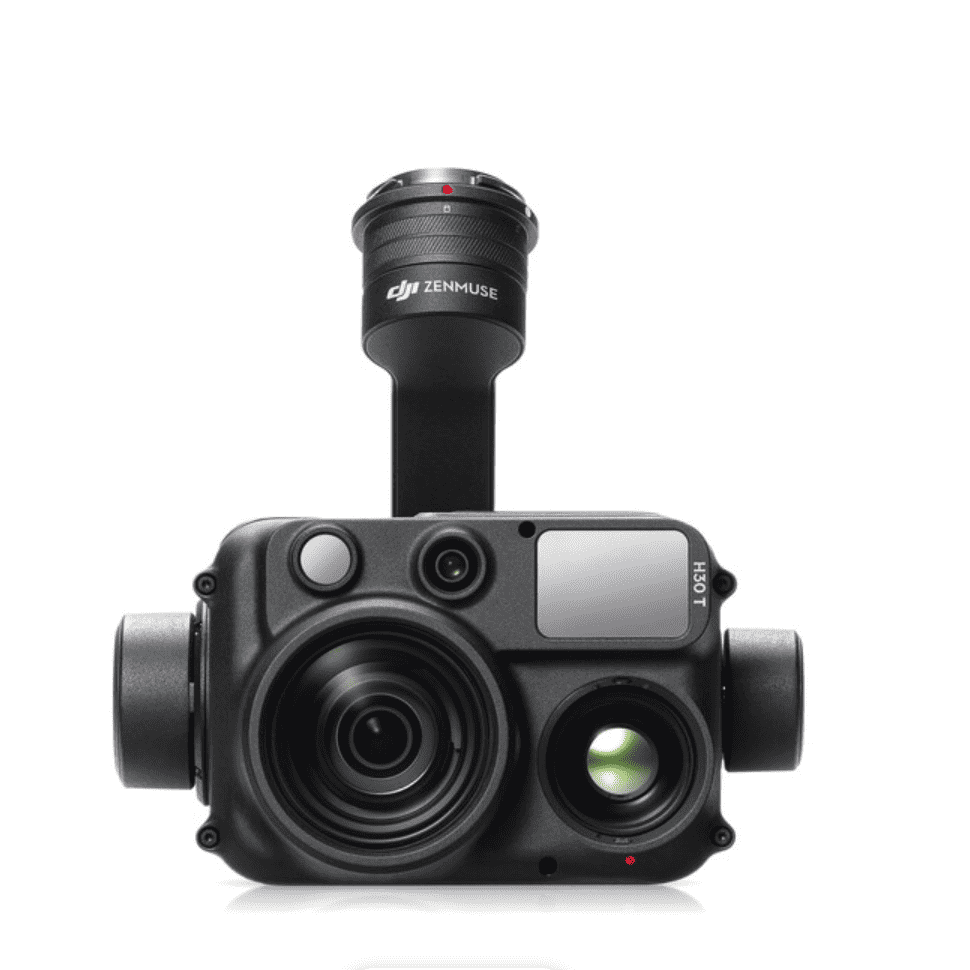

The DJI Zenmuse H30T thermal camera payload combines native 1280 × 1024 thermal imaging, a 40 MP zoom camera, a 48 MP wide camera, laser ranging and NIR illumination. It is a separate multi-sensor payload for supported Matrice aircraft, not a complete drone.
Camera payload only. Aircraft and flight power system are not included.
Best for
Thermal asset inspection · Public safety observation · Utility and solar inspection
More native thermal detail
The 1280 × 1024 thermal sensor records temperature differences at a higher native resolution than the 640 × 512 cameras in the Matrice 4T and 4TD.
Zoom and range in the same payload
The 40 MP zoom camera supports 34× hybrid optical zoom. A laser rangefinder measures up to 3,000 m under specified conditions, and NIR illumination supports compatible night imaging.
Build a compatible aircraft system
The three-axis payload weighs approximately 920 g. Confirm the aircraft, supported firmware and gimbal mounting configuration before ordering.
The specifications that matter
| Payload | DJI Zenmuse H30T multi-sensor camera |
|---|---|
| Native thermal resolution | 1280 × 1024 at 30fps |
| Thermal sensor | Uncooled VOx; 12 μm pixel pitch; 8–14 μm spectral band |
| Thermal lens | 24 mm actual / 52 mm equivalent; f/0.95; 45.2° diagonal field of view |
| Thermal digital zoom | Up to 32×; digital enlargement does not change native sensor resolution |
| Temperature ranges without filter | High gain: -20 to 150°C; low gain: 0 to 600°C |
| With optional infrared density filter | High gain up to 450°C; low gain up to 1,600°C; filter is separate |
| Thermal measurement modes | Spot, area and center-point temperature measurement |
| Thermal image format | Radiometric R-JPEG; thermal video in MP4 |
| Zoom camera | 40 MP; 1/1.8-inch CMOS; 33.4–809.3 mm equivalent lens |
| Wide-angle camera | 48 MP; 1/1.3-inch CMOS; 24 mm equivalent; f/1.7 |
| Hybrid optical zoom | 34× |
| Maximum visible zoom | 400× including digital zoom |
| Laser rangefinder | 3–3,000 m maximum specification; actual range varies with surface, angle and atmosphere |
| NIR auxiliary light | 850 nm; approximately 8 m illumination-circle diameter at 100 m |
| Gimbal | 3-axis stabilization; detachable DJI SKYPORT mount |
| Weight | 920 ± 5 g |
| Dimensions | 170 × 145 × 165 mm |
| Rated power | 28 W |
| Protection | IP54; resistance can decline with wear |
| Operating temperature | -20 to 50°C (-4 to 122°F) |
| Supported aircraft | Matrice 400; Matrice 350 RTK; Matrice 300 RTK with DJI RC Plus |
| Memory card requirement | microSD U3 / Class 10 / V30 or higher; follow DJI recommended-card list |
Native thermal resolution is 1280 × 1024. Digital zoom does not create additional native detail. Temperature ranges with the optional density filter do not apply without that filter. Rangefinder maxima require suitable surfaces and atmospheric conditions. Aircraft, batteries and separately listed accessories are not included with the camera payload. Verify aircraft/controller firmware compatibility.
System compatibility
- DJI Matrice 400
- DJI Matrice 350 RTK
- DJI Matrice 300 RTK with DJI RC Plus
Included with this exact product

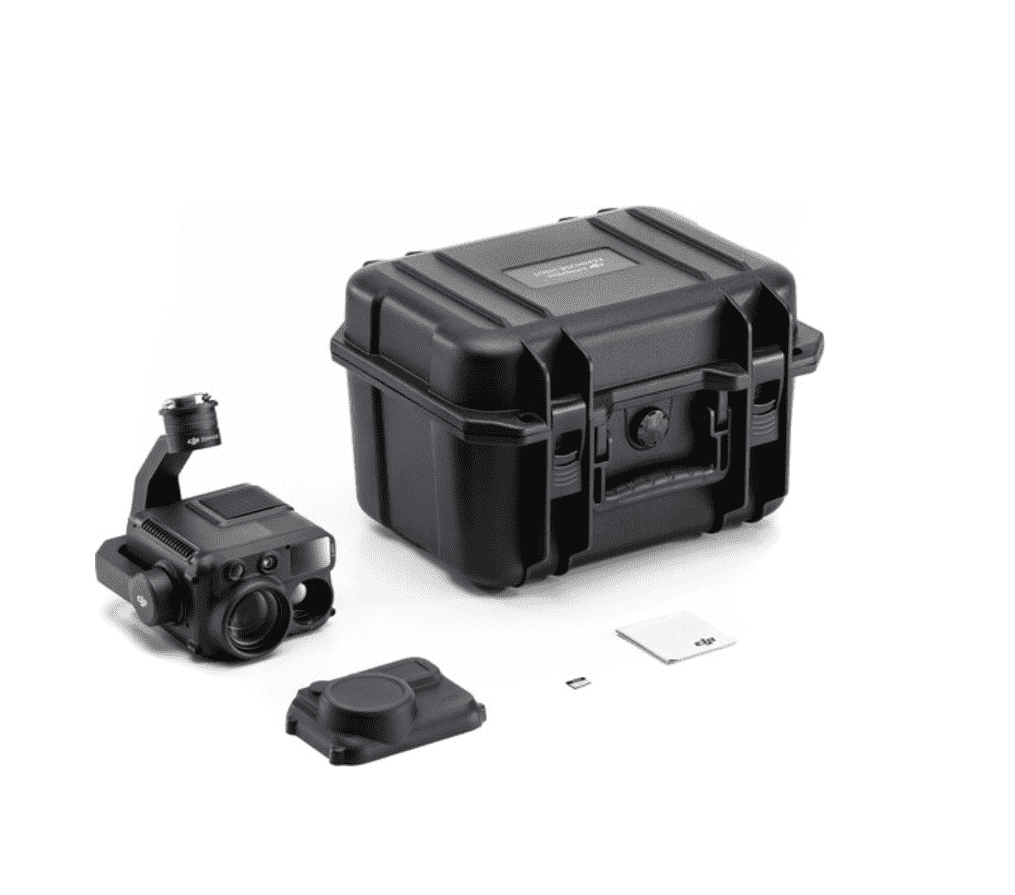

- 1 × DJI Zenmuse H30T camera and gimbal payload
Only the items listed above are included. Optional accessories and protection plans are sold separately.
Compatible accessories & field monitors
Optional additions for this product. A field monitor requires a compatible video output and power.

Accidental damage protection through CPS
Optional third-party coverage for eligible aircraft. Choose the plan for your drone model and the term you want.
What's covered
- Accidental crashes, impacts, collisions and hard landings
- Mechanical, hardware and electrical failures
- Eligible camera and gimbal supplied in the manufacturer's box
- Parts and labor for covered repairs
- Replacement options if a repair is not possible, under your program terms
What's excluded
- Loss, theft and flyaways
- Full water submersion
- Batteries and propellers
- Accessories not included in the manufacturer's box
Claims begin on Day 31. The plan starts on the purchase date with a 30-day claims hold. A deductible applies when you claim. The exact deductible, limits and replacement terms are set by your CPS certificate.
Explore CPS coverage, registration and claims →
Coverage summary reflects the CPS drone program supplied to Covert Drones. Your service contract controls eligibility and claims. CPS coverage is not DJI Care.
Delivery and returns
Estimated U.S. delivery is 5–7 business days, subject to availability and order review. We will contact you if your order needs a different delivery window.
Lithium batteries cannot ship overnight. Delivery windows are estimates, not guaranteed carrier arrival dates.
Read our shipping policy · Read our return policy
Return eligibility depends on product condition and activation status. Read the posted policy before opening, activating or flying your equipment.
Manuals, downloads & purchasing paperwork
Get the manufacturer's manuals and specifications, or ask us for help finding the right document for DJI Zenmuse H30T - 1280 × 1024 Thermal Camera. We can also help with an itemized quote and government purchasing paperwork.
DJI downloads cover DJI equipment. For third-party accessories, request the manual from our team.
Questions before you buy
Does this fit the Matrice 4T or 4TD?
No. H30T is a separate payload for compatible Matrice 400, 350 RTK and 300 RTK systems; it does not replace the built-in camera on a 4T or 4TD.
Does this purchase include an aircraft?
No. Aircraft, controller, flight batteries and charging equipment are separate.
